APRS with Tinytrak 4 and TYT TH-9000D

After a couple of frustrations (here and here) I have finally managed to get my TYT TH-9000D running quite well with my Tinytrak 4. After a few weeks using it I must say I am quite pleased with the result, the TH-9000D is sensitive and there are not many APRS frames I miss from the nearby digipeaters. I run it on low power (10W) which is plenty enough.

So here it is finally, what should have been a quite straight forward mod from the beginning.

There is a 6 pin connector inside the radio. The closer match I found is reference 2058943-5 from TE-Connectivity. I got mine from eBay. Yet it needed some rework and a drop of hot glue to prevent it from getting lose.

TYT TH-9000D Internal connector

When the radio is open and the front panel is on your right, the pinout goes like this, from right to left. The color apply to my cable assembly, you mileage may vary.

  1. GND (White)
  2. TX Audio (Yellow)
  3. COS, Actually CTCSS/DCS detected or not, (Orange)
  4. RX Audio (Blue)
  5. PTT (Black)
  6. +5 Volts (Red)

I only used pin 1,2,4 and 5 and cut all other wires to prevent any RF to get in an cause trouble.

Since I will use it with my Tinytrak 4 I used a male DB9 connector straight with correct pinout for the TT4..

TYT Pin NumberFunctionColorDB9 Pin Number
1GNDWhite6
2TX AudioYellow1
4RX AudioBleu5
5pttBlack3

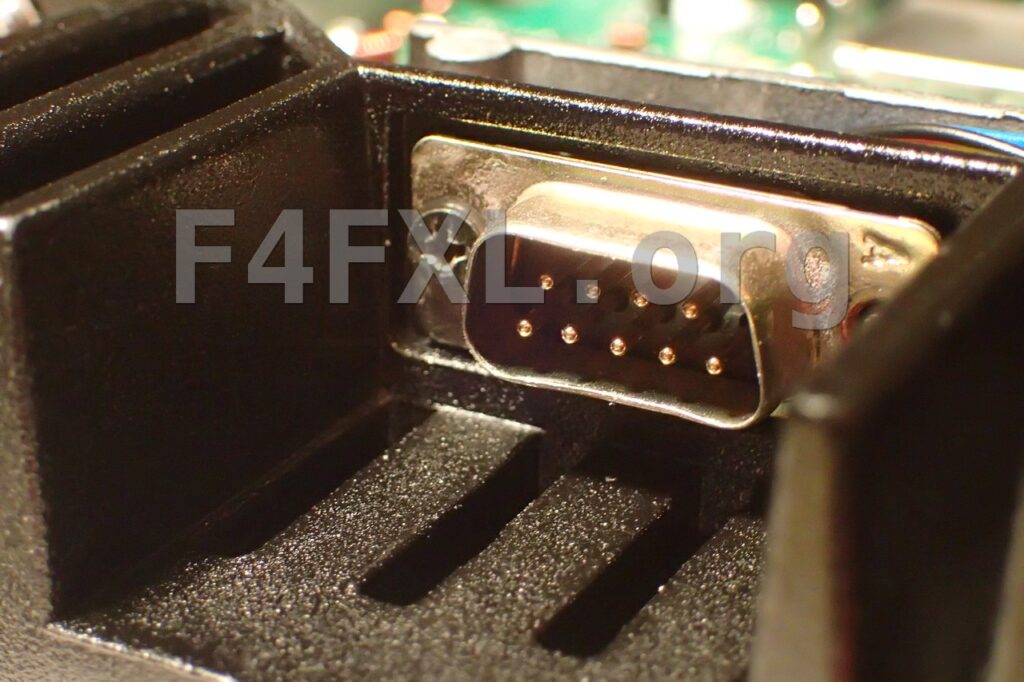

TYT TH-9000D DB9 Connector

The Tinytrak is also powered through the DB9 connector. I soldered a red wire from the DB9 pin 7 to the right pin (input) of the 8 Volts regulator. Special warning here, do not short this to ground or you’ll run in the CPU lock up issue. By powering the Tinytrak 4 this way it will turn on as soon as you turn the radio on.  UPDATE : This is a bad idea, get the power from somewhere else as I managed once again to fry the radio.

Powering the Tinytak 4

Next step, adjust the level of the RX audio signal. Set the radio to 25kHz bandwidth. Using an oscilloscope adjust the potentiometer to have 200 to 300mVpp when no packet is being received. Set the CD MODE to TONES, CD LEVEL to 7 and RX AMP to 64. This way you will be able to work with squelch fully open.

TX Level is quite easy, seet the TT4 TX LEVEL to 100 and TX TWIST to 31, done !

3 Comments

  1. thanks for this! I have a TH-9800 that I want to modify for packet. It appears from the radio schematic that there’s a J23 in that radio that has that 6-pin connector and may have all the signals I need.
    Question: Where did you mount that DB-9 connector? Did you have to machine a hole in the back of that radio?
    Cheers and 73 – Jon N7UV
